The Contender…

July 23, 2014

Bill Rittner (Hardware City Tools) recently made a knob and tote set out of holly for Catharine Kennedy (Custom Engraving by Catharine Kennedy). Bill had procured enough of the wood to make a second set. Being one who loves customized and personalized tools in my shop, I saw an opportunity to upgrade one of my planes with something pretty special, so I took a bit of money out of my woodworking funds and purchased it.

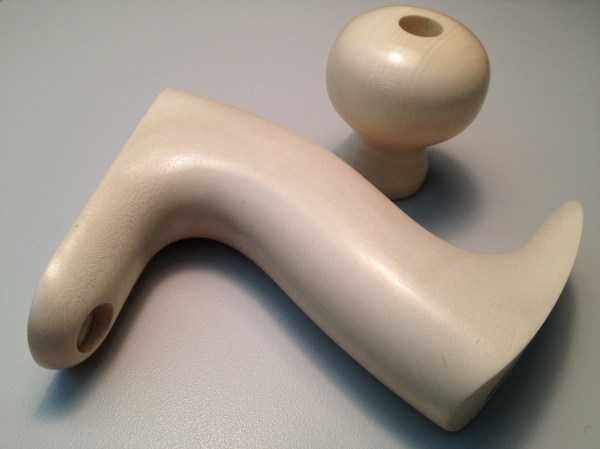

It almost looks a bit like unicorn horn...

It almost looks a bit like unicorn horn…

The idea was to figure out what plane I wanted to put it on and then have Catharine do some engraving on it, as well. Unfortunately, for various reasons, I had trouble deciding what plane I wanted to upgrade. My go-to smoothing plane has a cracked cheek that might not do well with being engraved on, my jointer plane would be quite costly to engrave and might be a bit heavy for the holly tote (not really sure about that, but I’d rather not take the chance), and my #5, a Type 18, isn’t really a favorite of mine, though it does its job well and I haven’t found the need to replace it.

A few weeks ago, I was at an estate sale, where I happened upon an old #5c that seemed to be in good shape. I didn’t have any need for another jack plane, but they only wanted $5 for the thing, so I figured at the least I could buy it and hand it over to a needy member of the St. Louis Woodworkers Guild who was just starting to get into hand tools.

Fresh from the farm...

Fresh from the farm…

As I was once again going through my planes last night (I don’t have that many, so it doesn’t take long), my eyes rested on the new #5c. I picked it up, wondering if I might not get rid of it. A quick glance at the Woodnet Stanley Type flow chart confirmed what I’d originally thought – it was a Type 13. But after examining it more closely, I noted something odd. It was pretty much completely rust-free! It did have an interesting bronze-like patina to it and the dust left on it from years of sitting idle seemed to be caked on, somehow, but the only rust I found after dis-assembly was on the post inside the knob. That settled it; I pulled out the restoration tools and some blue gloves and went to work.

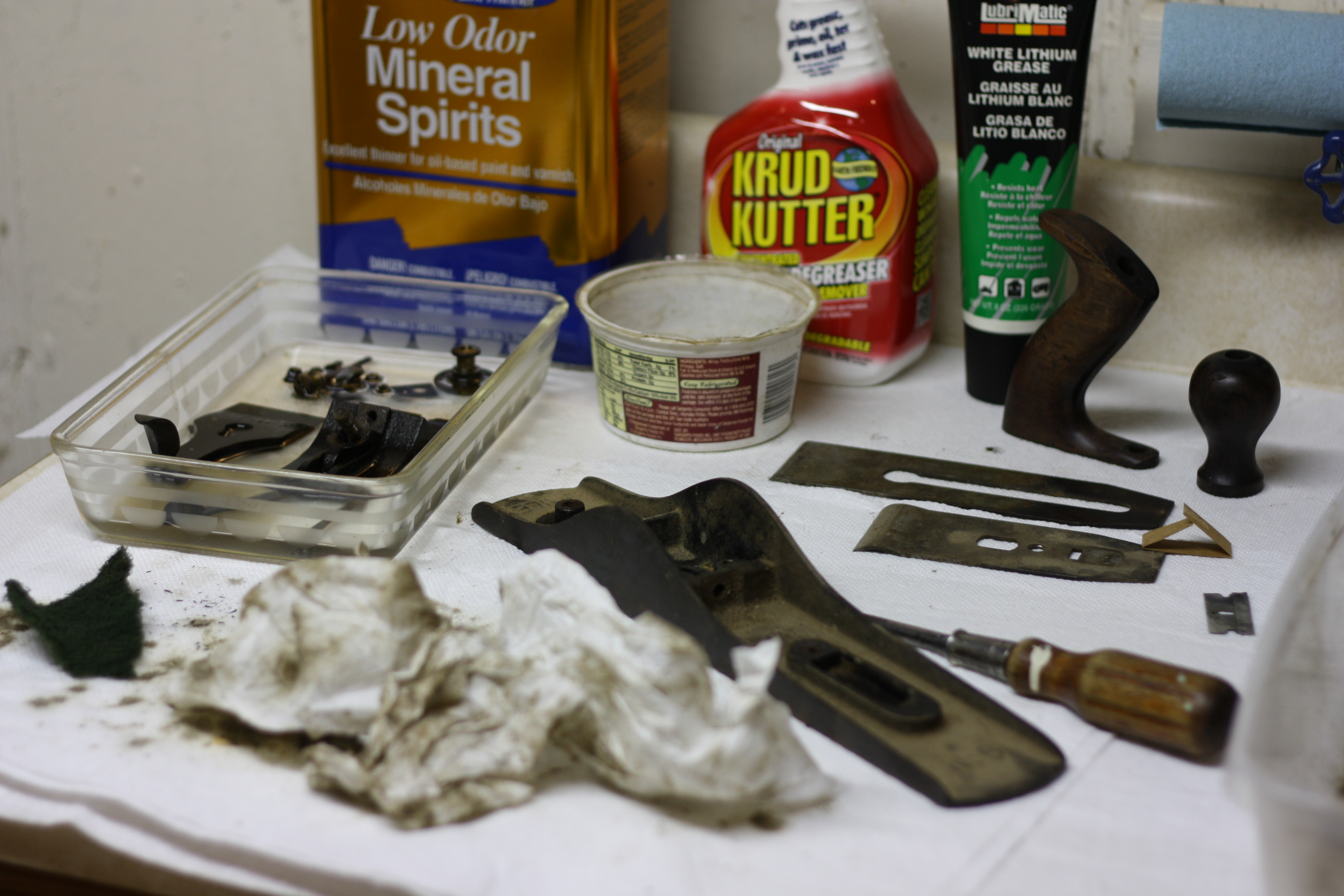

The plane broken down and the tools of the trade...

The plane broken down and the tools of the trade…

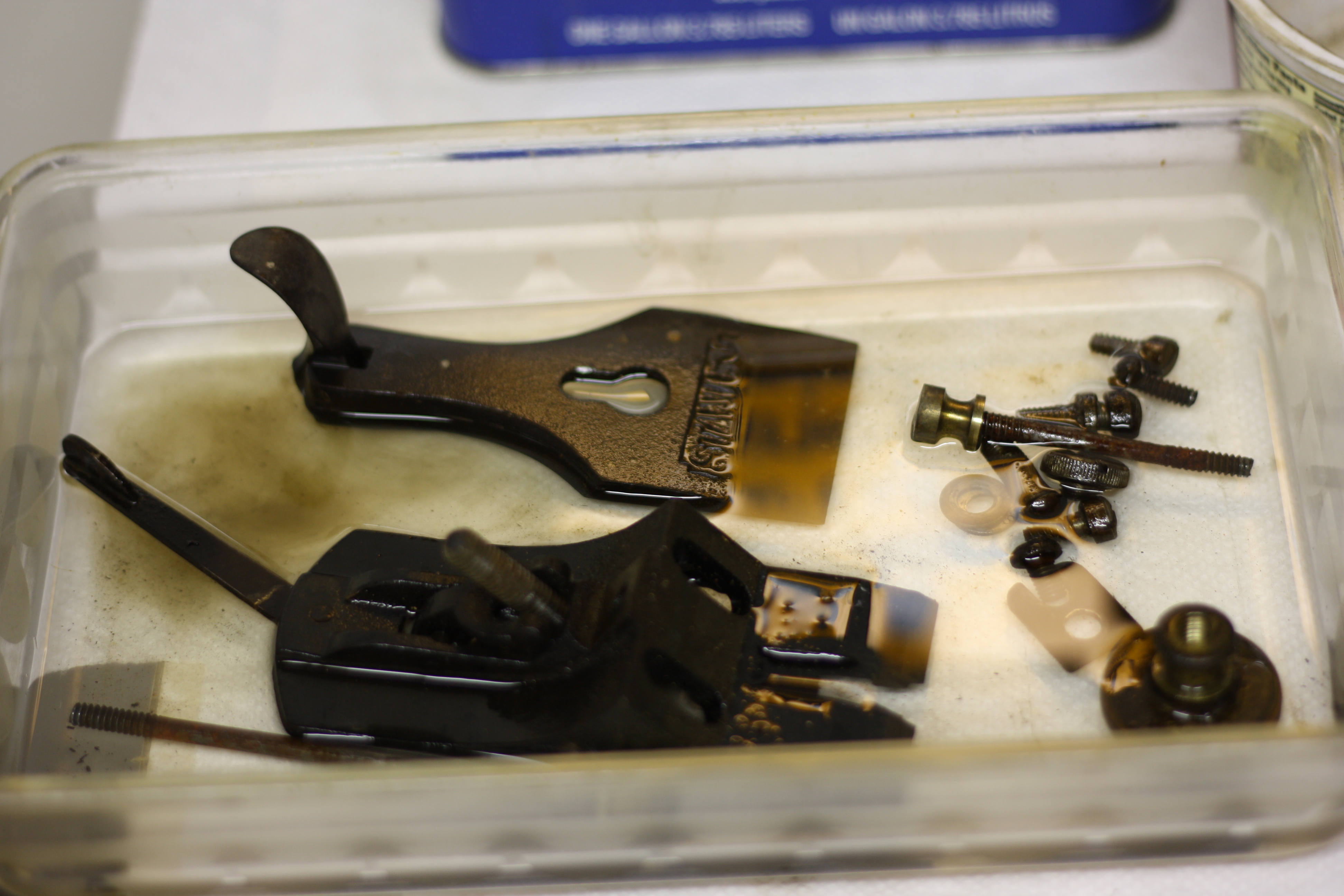

All of the small parts soaked in low-odor mineral spirits while I cleaned up the body.

Taking a bath...

Taking a bath…

The mineral spirits helped, but I didn’t see really good results until I started using an orange-based degreaser, which made me wonder if the plane hadn’t been coated with some sort of rust-preventative 80 years earlier and then sat unused ever since.

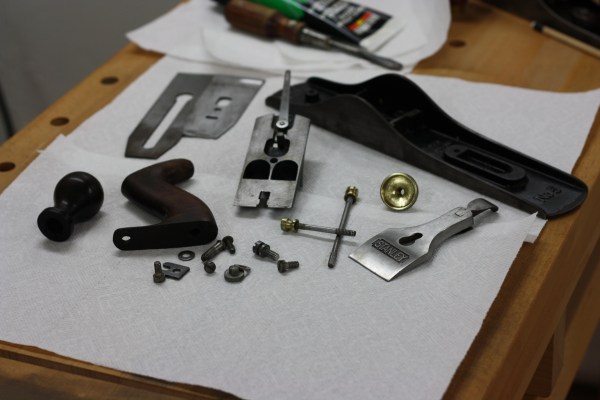

All scrubbed up for dinner...

All scrubbed up for dinner…

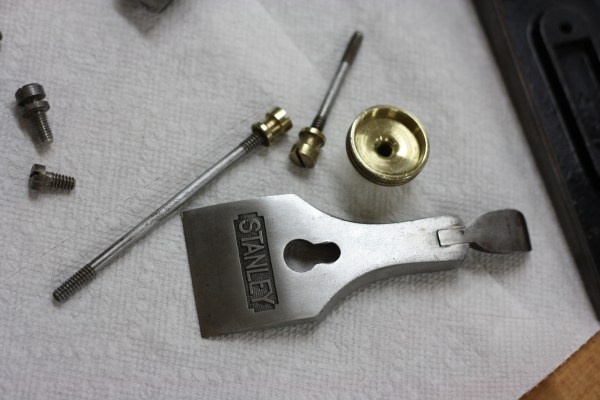

German auto polish helps bring out the shine...

German auto polish helps bring out the shine…

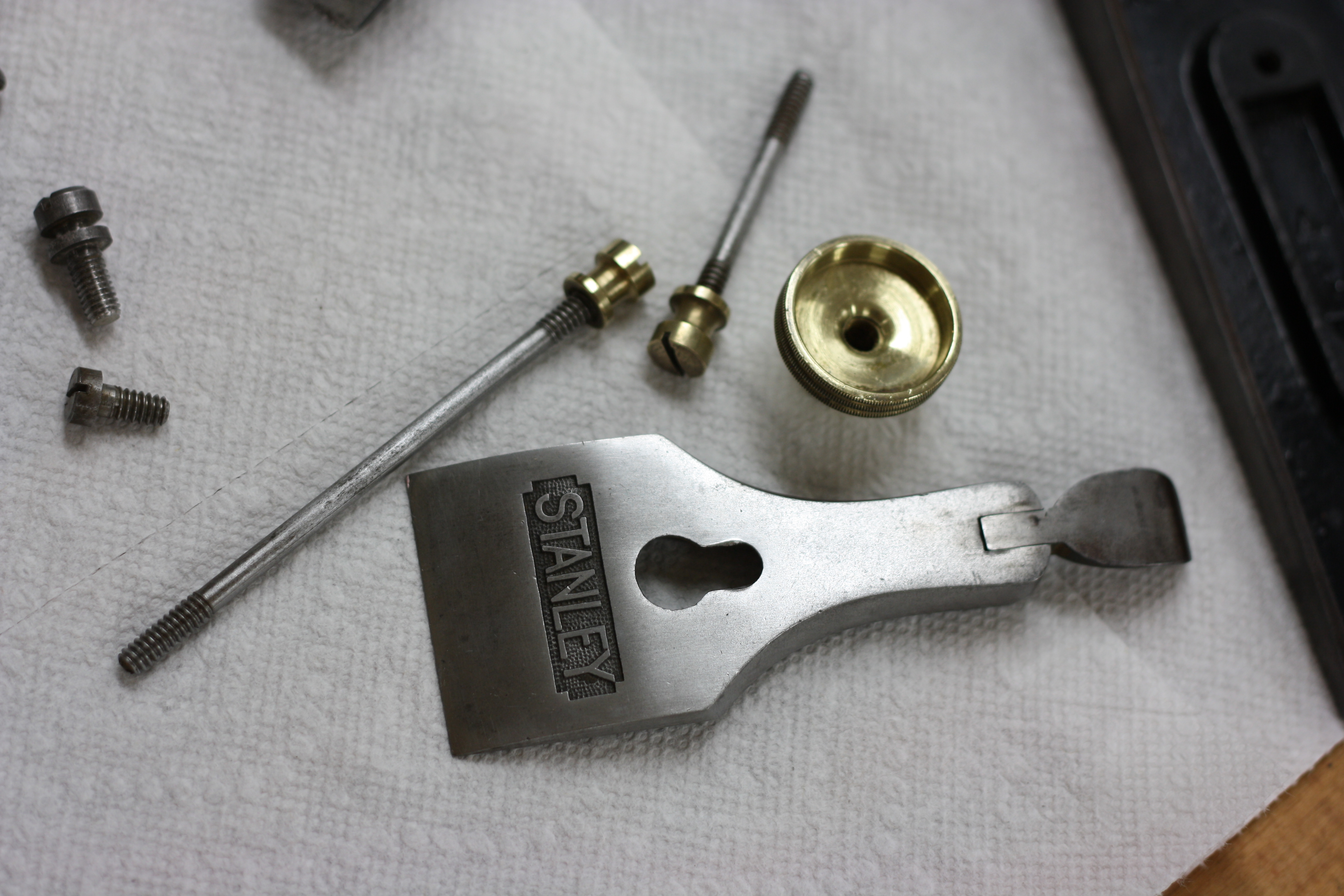

The small bits cleaned up nicely, but I was more impressed with the condition of the body…

Hidden under a layer of dirt...

Hidden under a layer of dirt…

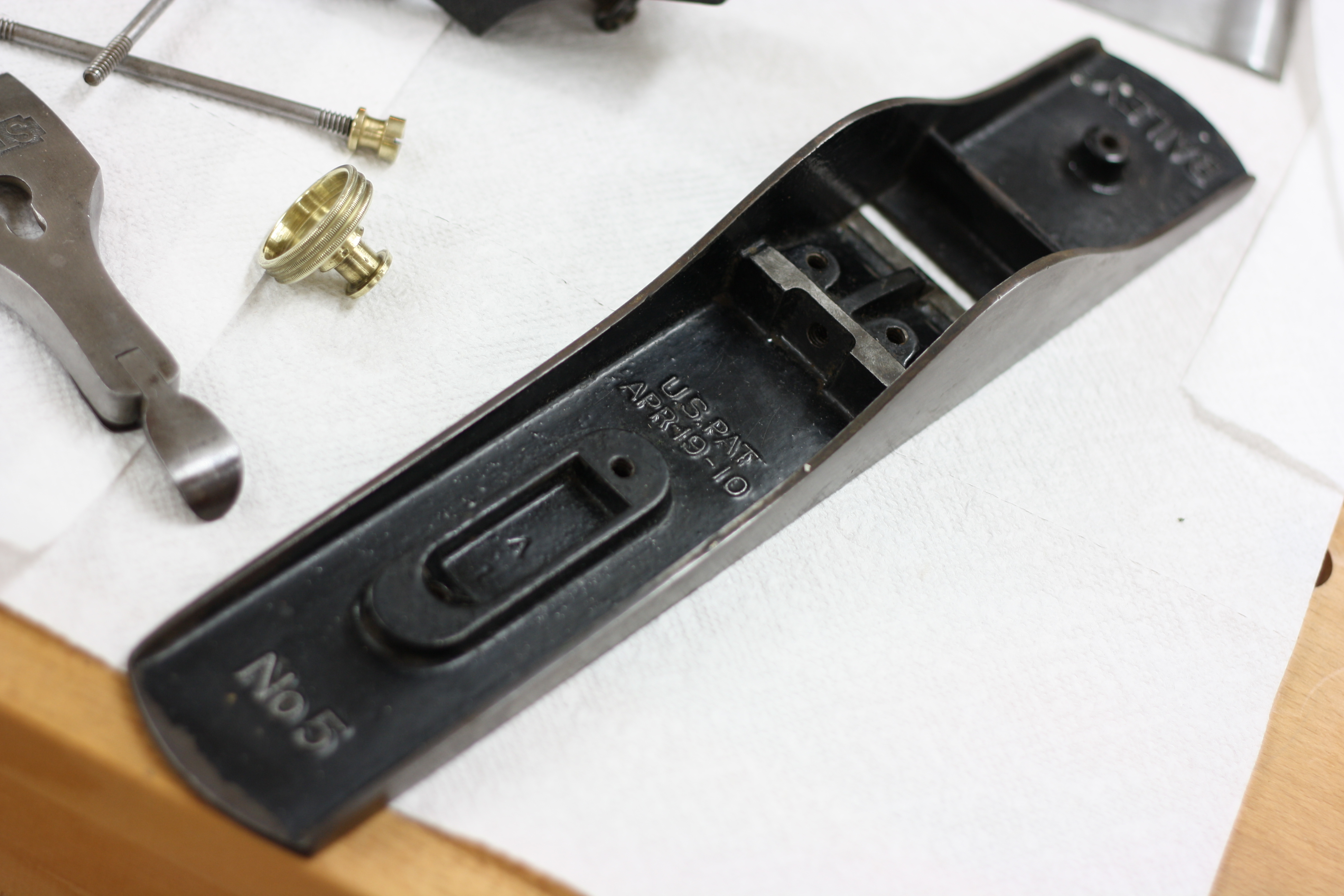

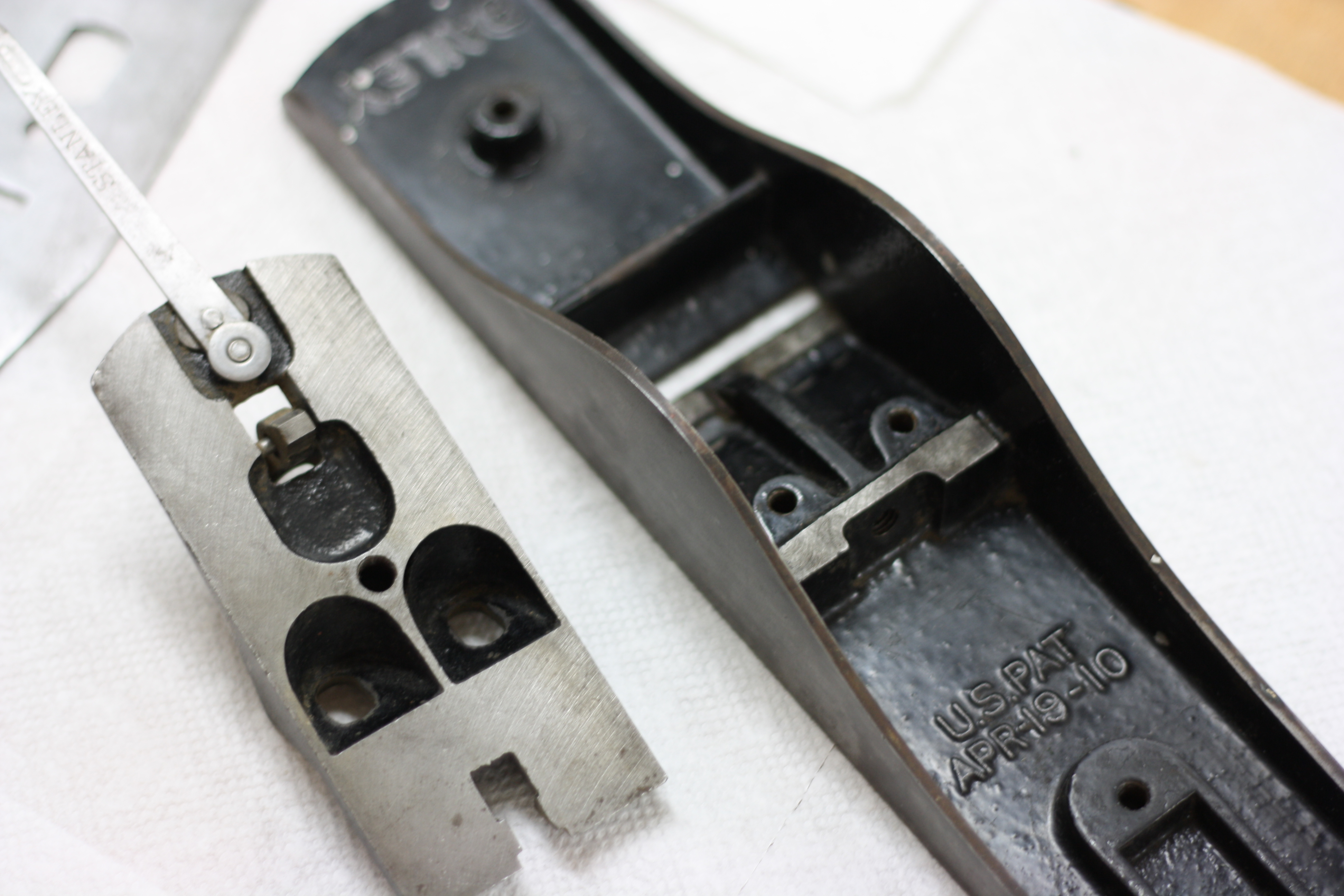

It has close to 95% of its japanning left, even on the frog.

The power of citrus!

The power of citrus!

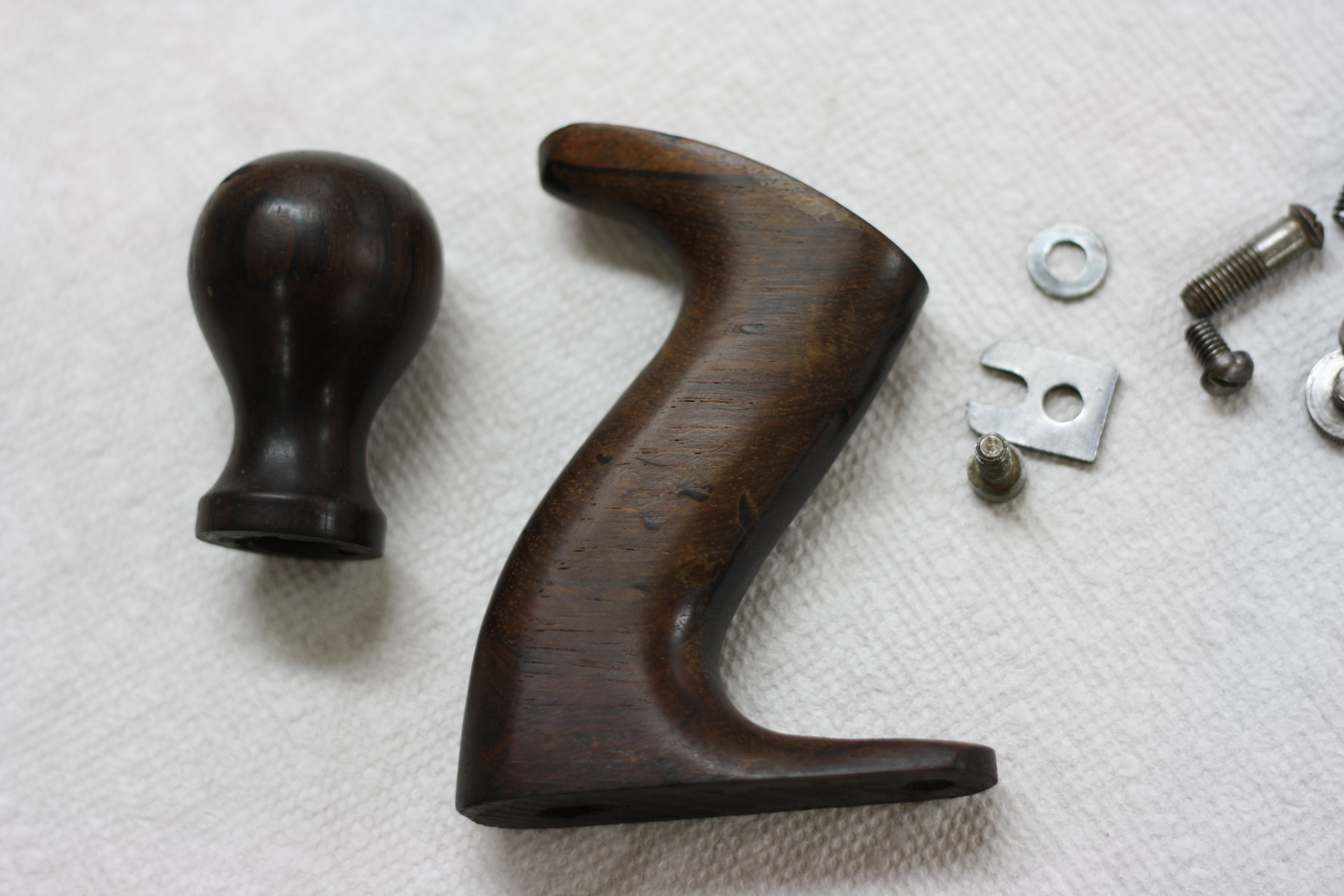

The tote has a little bit of sapwood on the horn, which always looks nice. I’ll hold on to these in case I need to replace them on a different plane in the future.

I'm sappy over a bit of sap wood...

I’m sappy over a bit of sap wood…

I still need to clean up the bottom a little; it doesn’t need to be flattened, but I do want to remove some of the gunk so it doesn’t drag across the wood. Before I send it off to Catharine for engraving (I need to save up a bit first), I’ll clean up the sides a bit more to make sure she has a nice canvas to work off of.

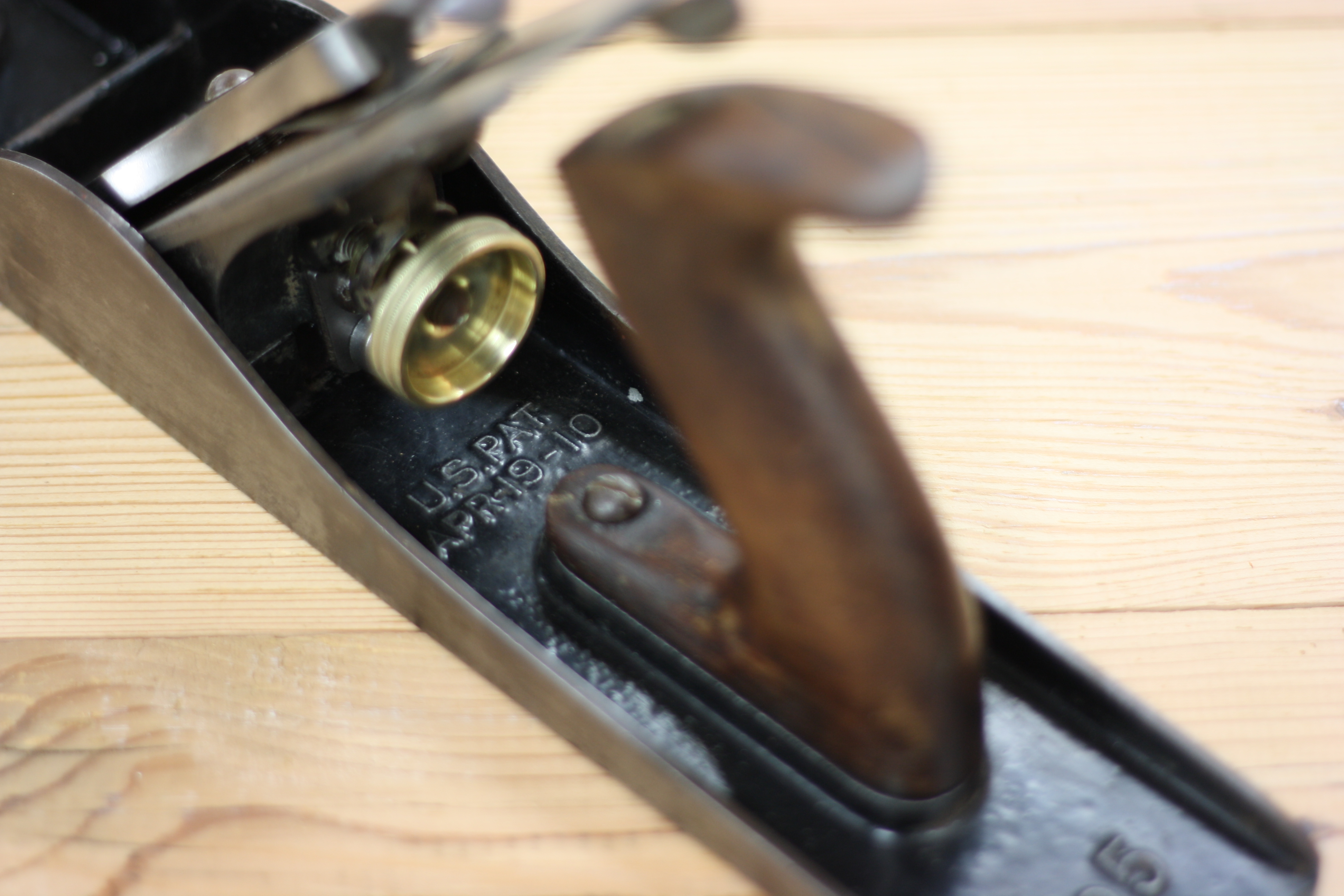

Stanley 5c Assembled 01

Stanley 5c Assembled 02

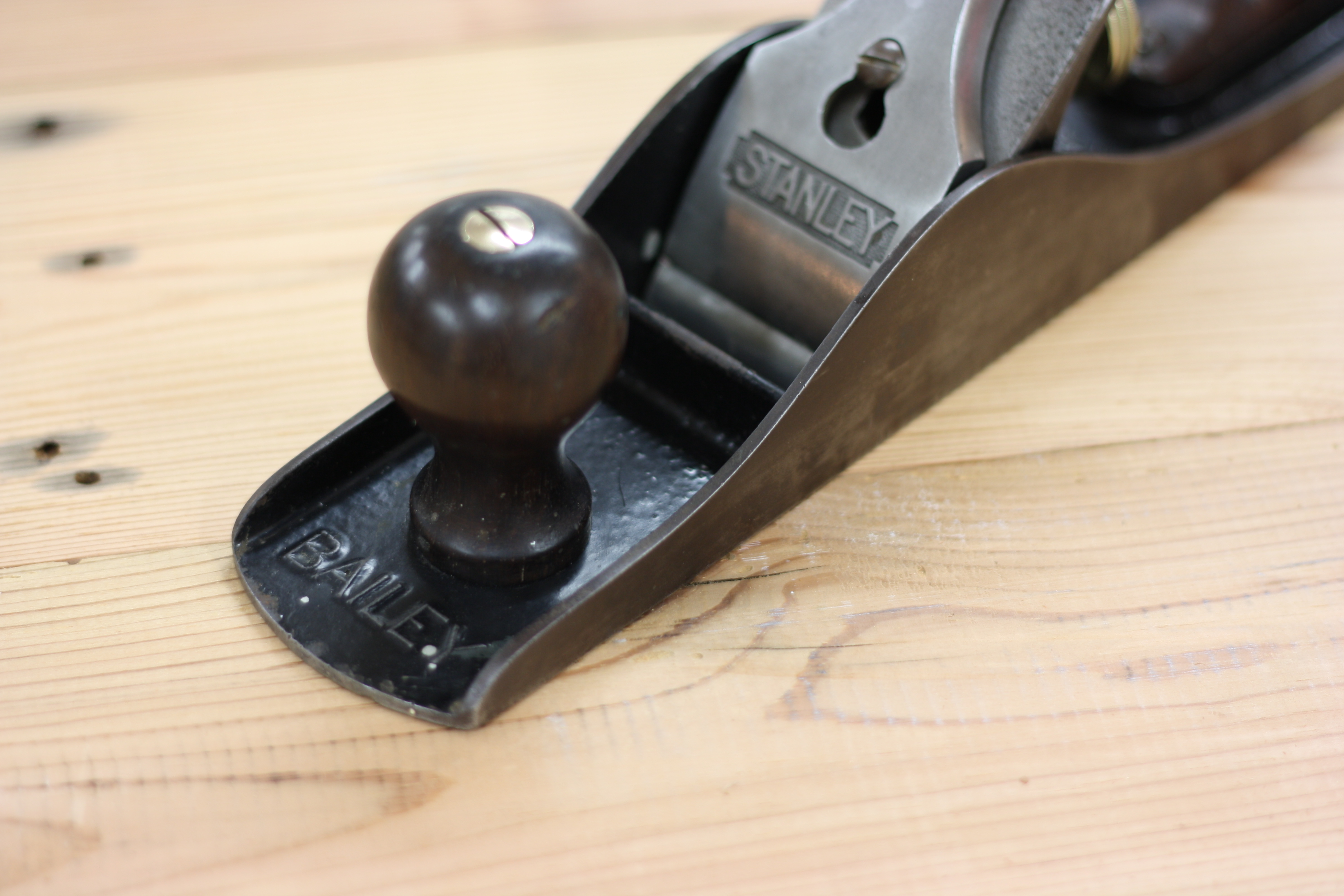

Here is the before again, followed by the after.

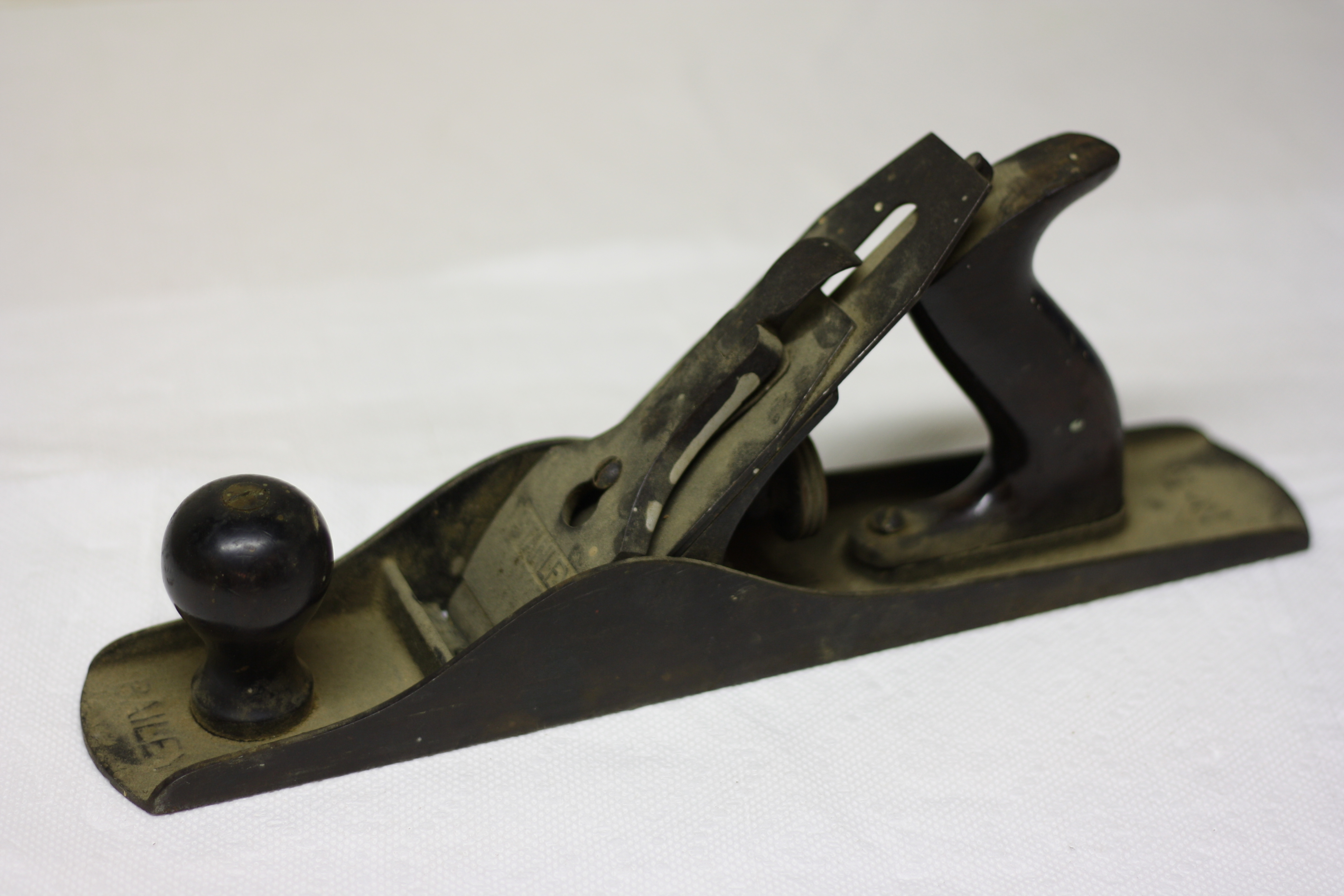

Before...

Before…

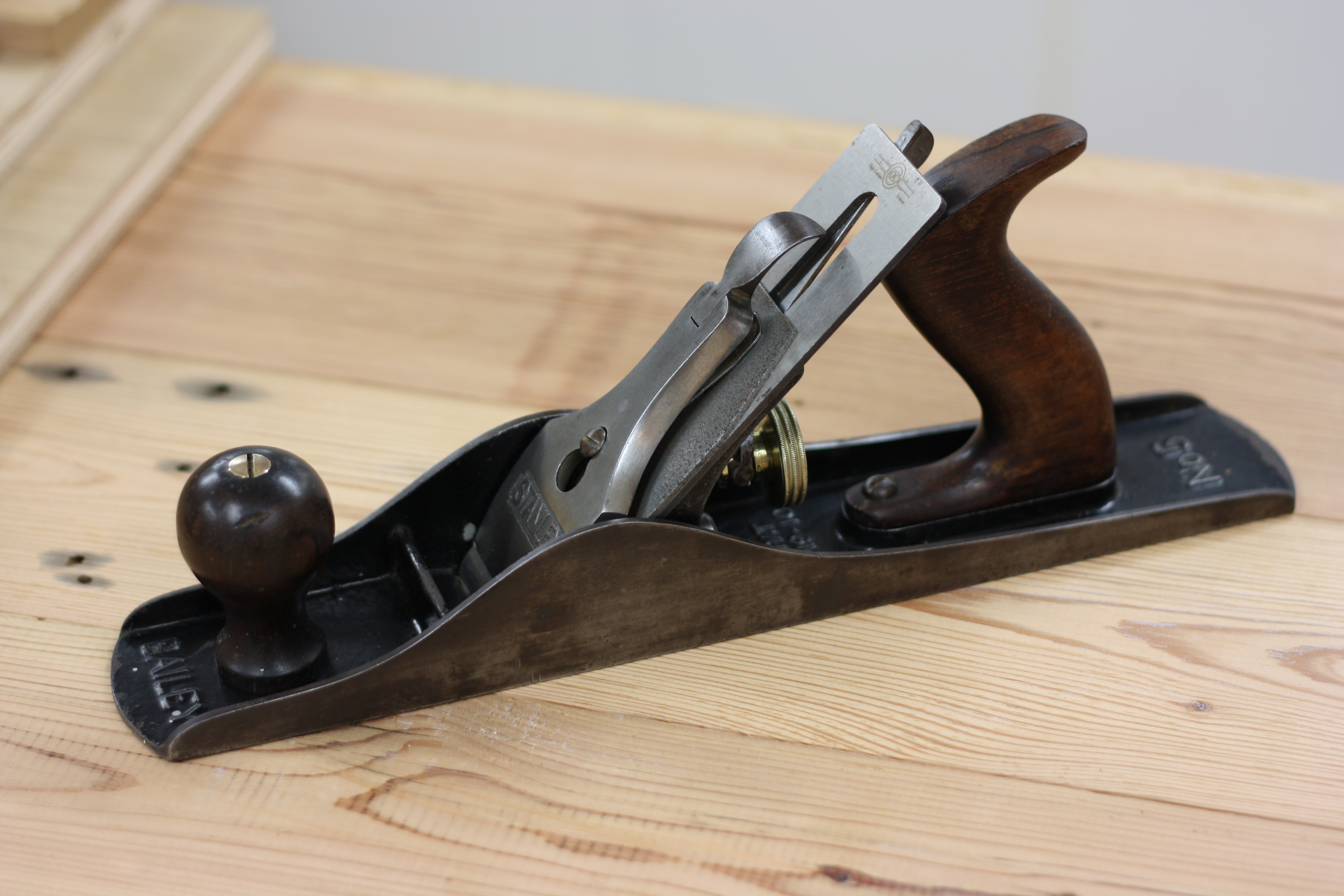

... and After.

… and After.

I believe my old #5 just got replaced.

Before reassembly, I took some tracings of the two sides so I can start working on engraving ideas.  I already have a few worked out, but you’ll have to wait a bit to see them. Sorry.  🙂

(And now you know why it takes so long for me to get anything done in the shop. I have some sort of woodworking-based ADHD.)
